Automatic plate cutting machine marble blocks is a new generation of products developed by our company, mainly adapted to the cutting, small cutting large marble blocks and specification sheet, this equipment, compact structure, stable performance, easy operation, high degree of automation.

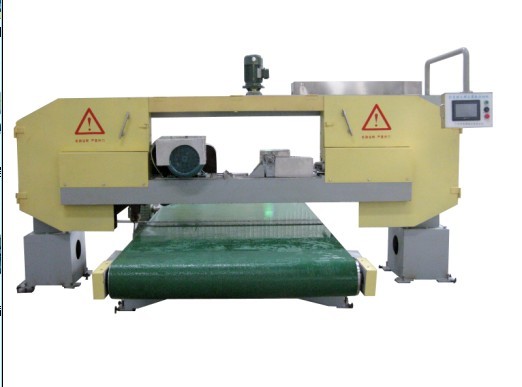

 Marble sheet cutting machine JF-SQ1600Z

 Model: JF-SQ1600Z                                         Size: 3670 * 3280 * 1960mm

Main driven Wheel Diameter: 1000 mm           Power supply: 380 V 50 Hz

Main Motor: 11 kW /4 P                                    Saw belt Size: 50* 5850* 1.05 mm

Feed motor: 0.75kw/4p                                     Hydraulic Motor 0.75 kW/4 P

Lift motor: 1.1kw/4p                                                Cut thickness: ≤ 2.5

The thickness of the thinnest cut: ≥ 2mm           Equipment Net weight: 3800kg

Maximum processing dimension: 2000*1680 *100 mm
